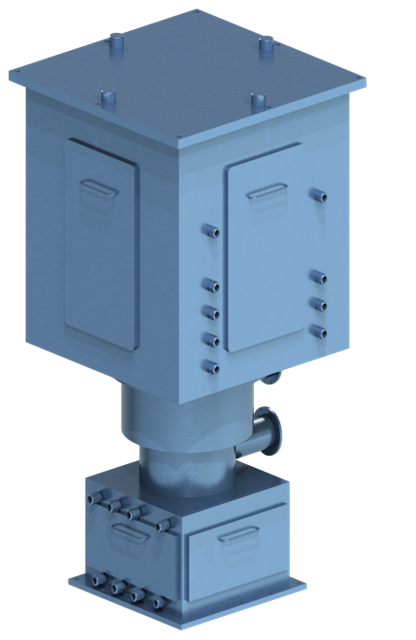

For applications in potentially explosive atmospheres, CPT can provide explosion-proof ATEX certified explosion-proof products. CPT ATEX cable reels are CE marked and comply with the 2014/34/EU ATEX directive for safe use in hazardous areas zone 21 or zone 1. The collector slip ring voltage can be 0.6/1kv-6/10kV. Features: 1. The explosion-proof type is EXd explosion-proof type, which belongs to the electrical equipment suitable for the IIC environment, and is also suitable for the use conditions of the IIA and IIB equipment;
2. The operating temperature is -30℃～60℃ 3. Protection class IP66 4. It can meet the requirements of explosive gas environment and explosive dust environment at the same time (zones 1 and 2, 21, 22) 5. The explosion-proof mark is Ex II 2 G Ex db IIB T4 Gb; Ex II 2 D Ex tb IIIC T135℃ Db 6. The key materials are adapted to corrosion-resistant stainless steel materials to ensure high reliability in harsh working environments; 7. No maintenance required
|
