CPT variable frequency cable reel uses frequency converter to accurately control the output torque, and provides a correspondingly changing driving torque with the change of the cable winding radius, so that the pulling force on the cable is always kept constant, and the cable reel is retracted. The speed of unwinding is also always optimally synchronized with the mobile device. Structural features of frequency controlled cable reel: The variable-frequency-driven cable reel consists of a variable-frequency motor, a reducer, a current collector, a cable reel and an electrical control box. It has many advantages such as small motor capacity, good torque characteristics, stable performance, and convenient adjustment, and is suitable for large-sized and long-distance power supply cables for port machinery. In particular, it solves the problem that the traditional cable reel cannot adapt to the high lifting height and fast speed of the new generation of cranes.
|

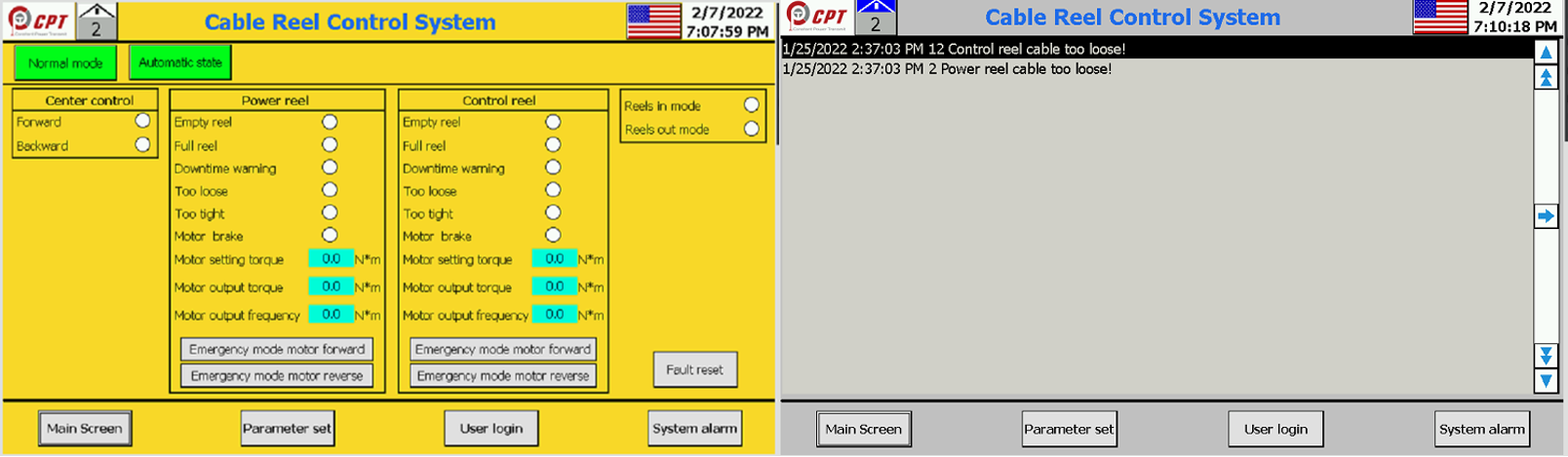

CPT frequency conversion cable reel control cabinet adopts visual operation interface. According to the use effect, users can directly regulate the reel parameters. In addition, the operation panel also integrates common cable fault prompts, which can facilitate troubleshoot and shorten maintenance time.
If necessary, through the operation panel, users can manually regulate the torque curve to achieve better winding and releasing effect.
|
|
